Simple gridgen¶

[1]:

%matplotlib inline
import numpy as np
from cem_gridtools.cem_gridtools import CGrid

[2]:

# Define boundary points
x = np.array([0, 1, 1, 0], dtype='d')
y = np.array([0, 0, 1, 1], dtype='d')
# Make all points external
beta = np.ones(x.shape, dtype='d')

[3]:

# Create, generate and plot resulting grid
CG = CGrid(x,y,beta)
CG.gen_grid(5, 8)

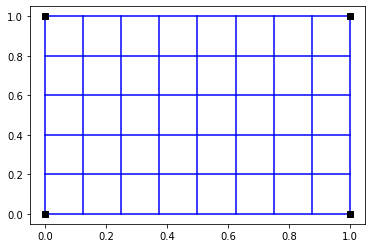

CG.plot()

[4]:

# Plot full grid

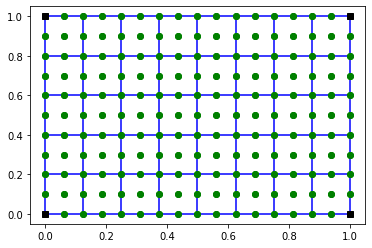

CG.plot(dd=True)

Grid with channels¶

[6]:

pts = np.loadtxt('grid_points.txt')
CG = CGrid(pts[:,0],pts[:,1],pts[:,2])
CG.gen_grid(30,42)

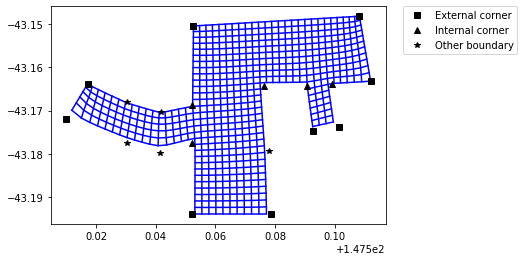

CG.plot(legend=True)
